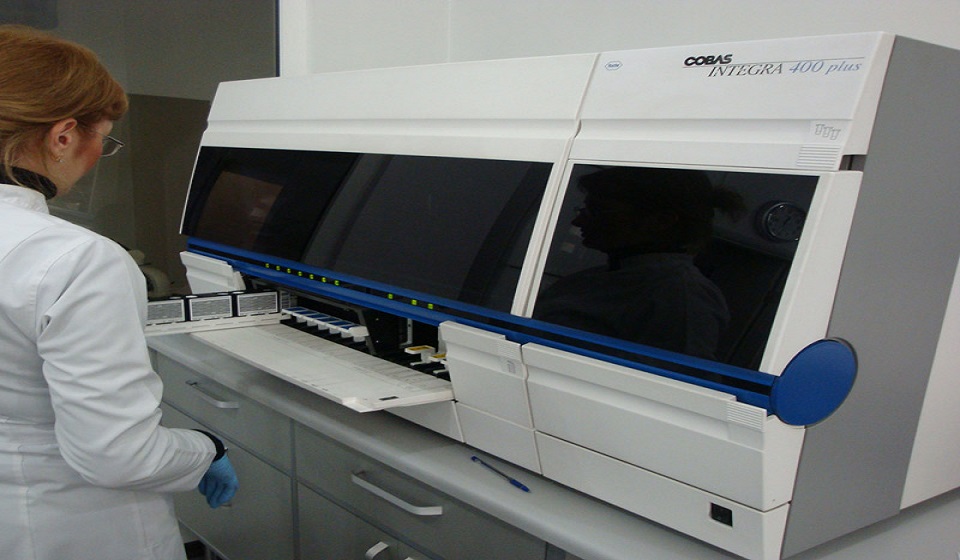

COBAS INTEGRA 400 plus is designed to consolidate testing and increase efficiency while reducing total running costs of the laboratory.
COBAS INTEGRA 400 analyzer Specifications
Specification
| System |
Random and continuous access, sample selective analyser Integration of 4 measuring principles 36 tests onboard Absorbance photometry : Enzymes and substrates Turbidimetry : Specific proteins, drugs of abuse Fluorescence polarimetry : Therapeutic drugs, thyroid tests Ion-selective electrode potentiometry : Na+,K+,Cl– and Li+ |
| Test throughput | Up to 400 tests/hr (including ISE) |
| Sample types | Serum, plasma, urine, CSF, hemolysate and whole blood (HbA1c) |
| Sample handling |
90 primary or secondary tubes on-board Up to 6 x RD15 racks on-board Cooled rack position for controls and calibrators Automatic sample dilution and concentration Barcode reading via laser scanner, with immediate STAT recognition |
| Sample container types |
Primary tubes: 5 to 10 mL; 16x100, 16x75, 13x100, 13x75 mm with closed cap for Hitachi microcup, 500 μL; Hitachi standard cup, 1.5 mL; cobas cup, 650 μL; Eppendorf cup, 1.5 mL; Cup on tube definable |
| Sample volume | Typically 2 to 10 μL per test, ISE indirect 20 μL, ISE direct 97 μL |
| Sample barcode types | Code 128, Codabar, Code 2 of 5 interleaved, Code 39 |
| Reagents onboard capacity |
32 cobas c packs, 50-800 tests per cobas c pack Up to 8 racks of 4 cobas c packs on-board Reagent compartment cooled to 10-15°C Onboard stability up to 3 months, calibration typically each lot |
| Reaction cells |
Holds 1,000 disposable cuvettes with 5 mm path length, and 120-240 μL reaction volume |
| Control unit |
HP workstation running Windows XP Intel Pentium IV with 512 MB RAM Dual 40 GB hard drives, CD ROM, floppy drive and inbuilt modem |
| System interfaces | RS 232 serial interface, bi-directional, inbuilt modem for remote diagnostics access |
| Electrical requirements |
100-125/200-240 Volts AC, 50 or 60 Hz, consumption 1,200 VA |
| Physical dimensions |
Width : 135 cm (53.1 in) Depth : 66 cm (25.9 in) Height: 75 cm (28.5 in) |
| Weight | 320 kg (506 lbs) |
| Water requirements | Up to 2 liters per hour in operating mode, Type 1 NCCLS |
| Certification | CE, UL, C-UL |
